Spur Gear Motor

HT-SOG27B

-Motor type : Brushed DC motor
-Gearbox Size: 27mm Diameter
-Voltage: 3~24VDC
-Speed: 1~800 RPM
-Torque: 0.1~6kg.cm
-Output shaft: 4mm diameter
-Product: 27mm 12v 400rpm high torque gearmotor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 1~800 rpm
    -Torque: 0.1~6kg.cm

    -Precious Metal Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Electronic Lock and Safe
    -Electric Vavle and Acuator
    -Equipment and Appratus
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

6

7

8

Gear Ratio

10

21

43

92

188

392



27

61

110

193

438







120

210

478







139

250

521









317

620











720

Gearbox length “L” (mm)

25

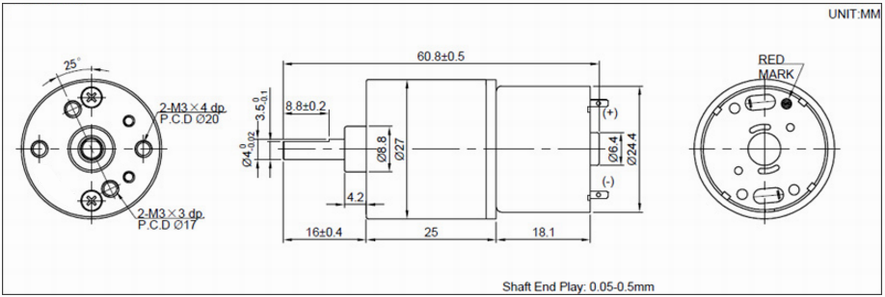

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG27B-0358

1.5-4.5

3VDC

58

≤0.04

45

≤0.10

0.15

≤0.52

0.79

HT-SOG27B-0330

1.5-4.5

3VDC

30

≤0.04

22

≤0.10

0.26

≤0.52

1.35

HT-SOG27B-0315

1.5-4.5

3VDC

15

≤0.04

12

≤0.10

0.29

≤0.52

1.48

HT-SOG27B-0306

1.5-4.5

3VDC

6

≤0.04

4.5

≤0.10

1.05

≤0.52

5.35

HT-SOG27B-6120

3.0-9.0

6VDC

120

≤0.05

95

≤0.18

0.26

≤1.35

1.35

HT-SOG27B-0675

3.0-9.0

6VDC

75

≤0.05

54

≤0.18

1.15

≤1.35

5.85

HT-SOG27B-0660

3.0-9.0

6VDC

60

≤0.05

45

≤0.18

0.55

≤1.35

2.85

HT-SOG27B-0629

3.0-9.0

6VDC

29

≤0.05

21

≤0.18

1.05

≤1.35

5.45

HT-SOG27B-0622

3.0-9.0

6VDC

22

≤0.05

17

≤0.18

0.48

≤1.35

2.55

HT-SOG27B-1230

6.0-15.0

12VDC

30

≤0.05

23

≤0.12

0.75

≤0.65

3.95

HT-SOG27B-1224

6.0-15.0

12VDC

24

≤0.05

16

≤0.12

0.68

≤0.65

3.56

HT-SOG27B-1228

6.0-15.0

12VDC

28

≤0.05

21

≤0.12

0.75

≤0.65

3.95


Remark:
1,The speed is adjustable
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3vdc,4.5vdc,6vdc,9vdc, 12vdc, 24vdc.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available

Tag: dc gear motor 30 rpm, gear motor 200 rpm, 12v motor with gear
