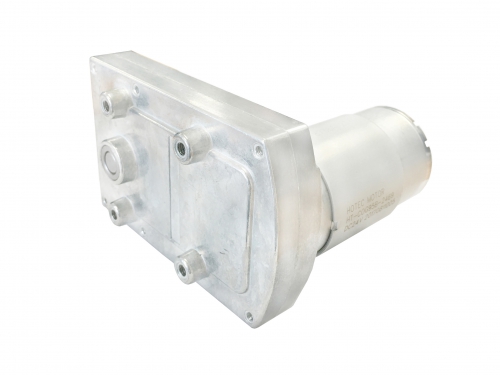

Flat Gearbox Motor
HT-COG95F
-Size: 95x60 mm
-Gearbox :Spur Gear Reduction
-Voltage:3~24VDC
-Speed: 1~160 RPM
-Torque:1~50kg.cm
-Output shaft: 8mm diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 1~160 rpm
-Torque: 1~50kg.cm
-Precious Carbon Brush
-Precise Metal Gears
-CW/CCW
-Low noise-Home and office Automation
-Banking and Vending System
-Equipment
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
|
Gear Ratio |
37 |
162 |
594 |
|
60 |
265 |
651 |
|
|
86 |
315 |
973 |
|
|
|
|
1059 |
|
|
|
|
|

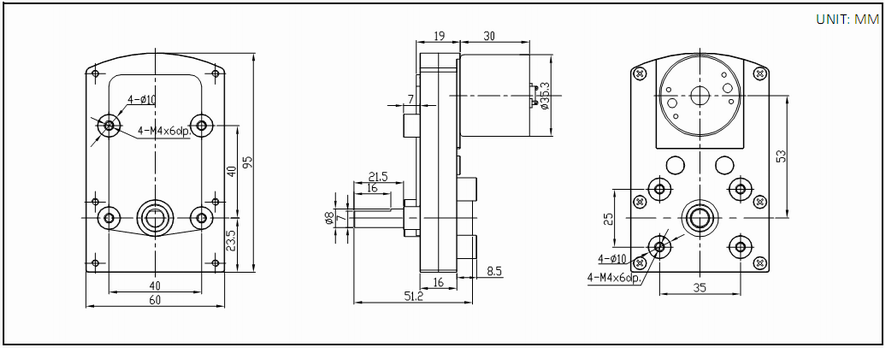

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-COG95F-24165 |
12.0-28.0 |
24VDC |
165 |
≤0.06 |
136 |
≤0.26 |
1.45 |
≤1.35 |
6 |
|
HT-COG95F-24144 |
12.0-28.0 |
24VDC |
144 |
≤0.06 |
122 |
≤0.26 |
1.65 |
≤1.35 |
6.5 |
|
HT-COG95F-24105 |
12.0-28.0 |
24VDC |
105 |
≤0.06 |
85 |
≤0.26 |
2.25 |
≤1.35 |
9.5 |
|
HT-COG95F-2472 |
12.0-28.0 |
24VDC |
72 |
≤0.06 |
60 |
≤0.26 |
3.3 |
≤1.35 |
13 |
|
HT-COG95F-2438 |
12.0-28.0 |
24VDC |
38 |
≤0.06 |
30 |
≤0.26 |
5.6 |
≤1.35 |
23 |
|
HT-COG95F-2425 |
12.0-28.0 |
24VDC |
25 |
≤0.06 |
20 |
≤0.26 |
9 |
≤1.35 |
36 |
|
HT-COG95F-2420 |
12.0-28.0 |
24VDC |
20 |
≤0.06 |
16 |
≤0.26 |
10.5 |
≤1.35 |
42 |
|
HT-COG95F-2410 |
12.0-28.0 |
24VDC |
10 |
≤0.06 |
8.5 |
≤0.26 |
17.5 |
≤1.35 |
70 |
|
HT-COG95F-2409 |
12.0-28.0 |
24VDC |
9 |
≤0.06 |
7.5 |
≤0.26 |
19.5 |
≤1.35 |
98 |
|
HT-COG95F-2406 |
12.0-28.0 |
24VDC |
6 |
≤0.06 |
5 |
≤0.26 |
29 |
≤1.35 |
118 |
|
HT-COG95F-245.5 |
12.0-28.0 |
24VDC |
5.5 |
≤0.06 |
4.5 |
≤0.26 |
33 |
≤1.35 |
126 |
|
HT-COG95F-244.5 |
12.0-28.0 |
24VDC |
4.5 |
≤0.06 |
3.5 |
≤0.26 |
36 |
≤1.35 |
150 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.
