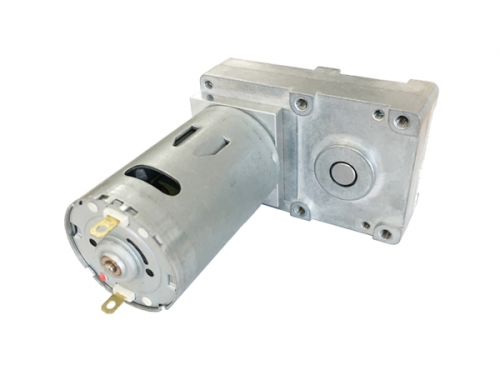

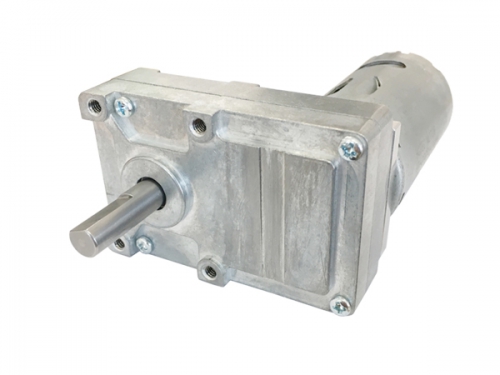

Flat Gearbox Motor

HT-COG73

-Size: 73x47 mm
-Gearbox :Spur Gear Reduction
-Voltage:3~24V
-Speed: 1~550 RPM
-Torque:1~160kg.cm
-Max rated torque:40kg.cm
-Output shaft: max 8mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 1~550 rpm
    -Torque: 1~160kg.cm
    -Max Rated Torque: 40kg.cm

    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise

    -Home and office Automation
    -Banking and Vending System
    -Equipment

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage 2 3 4 5 6
Gear Ratio 15 36 66 295 552
  51 93 363 615
    123 404 680
    170 458 757
      510 859
        957
        1113
        1240

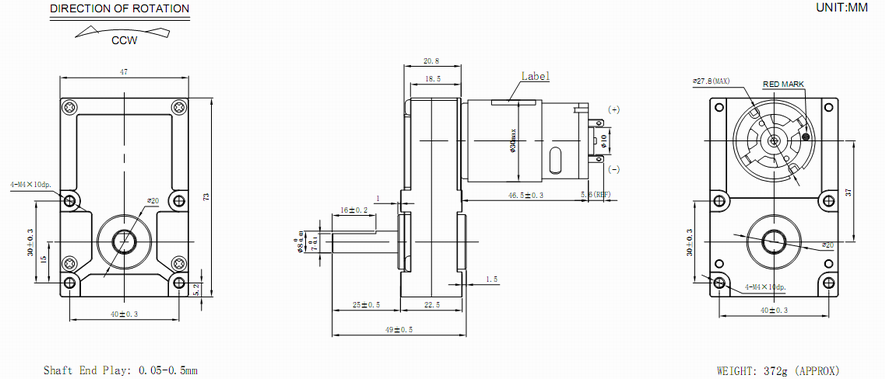

Dimensions

Reference

MODEL VOLTAGE NO LOAD AT MAX EFFICIENCY
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
  r/min A r/min A kg.cm
HT-COG73-12390 9-14VDC 12VDC 390 0.22 330 0.88 1.1
HT-COG73-12165 9-14VDC 12VDC 165 0.22 138 0.88 2.4
HT-COG73-12115 9-14VDC 12VDC 115 0.22 95 0.88 3.5
HT-COG73-1290 9-14VDC 12VDC 90 0.22 75 0.88 5
HT-COG73-1262 9-14VDC 12VDC 62 0.22 51 0.88 5.5
HT-COG73-1246 9-14VDC 12VDC 46 0.22 40 0.88 7
HT-COG73-1234 9-14VDC 12VDC 34 0.22 28 0.88 10
HT-COG73-1220 9-14VDC 12VDC 20 0.22 16 0.88 15
HT-COG73-1216 9-14VDC 12VDC 16 0.22 13 0.88 19
HT-COG73-1214 9-14VDC 12VDC 14 0.22 12 0.88 21
HT-COG73-1211 9-14VDC 12VDC 11 0.22 9 0.88 26
HT-COG73-129.5 9-14VDC 12VDC 9.5 0.22 8 0.88 28
HT-COG73-127.6 9-14VDC 12VDC 7.6 0.22 6.3 0.88 35
HT-COG73-1206 9-14VDC 12VDC 6 0.22 5 0.88 40
HT-COG73-125.2 9-14VDC 12VDC 5.2 0.22 4.2 0.88 40
HT-COG73-123.8 9-14VDC 12VDC 4.5 0.22 3.8 0.88 40
