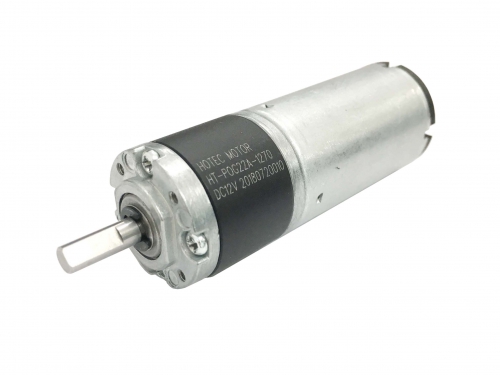

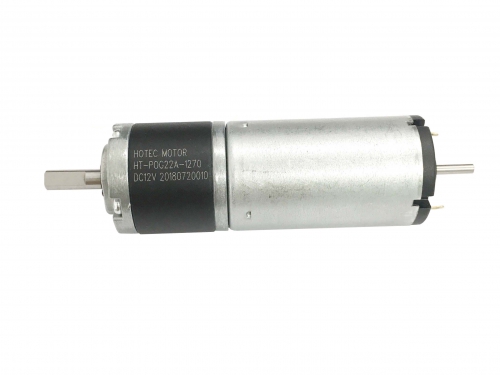

Round Gearbox Motor

HT-POG22A

-Size: 22mm Diameter.
-Gearbox: Planetary Gear Reduction
-Voltage: 3~24V
-Speed:1~2000 RPM
-Torque:0.1~12kg.cm
-Output shaft:4mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 1~2000 rpm
    -Torque 0.1~12kg.cm
    -High Torque
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Automatic Acuator
    -Medical Equipment & Advice
    -Electric Valves
    -Electic Window Opener
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

1

2

3

4

5

Gear Ratio

4

14

53

150

867



16

62

231

1014



19

72

270

1249





84

316

1386





104

370

1969









455



Gearbox length “L” (mm)

14.4

18

21.7

25.3

29

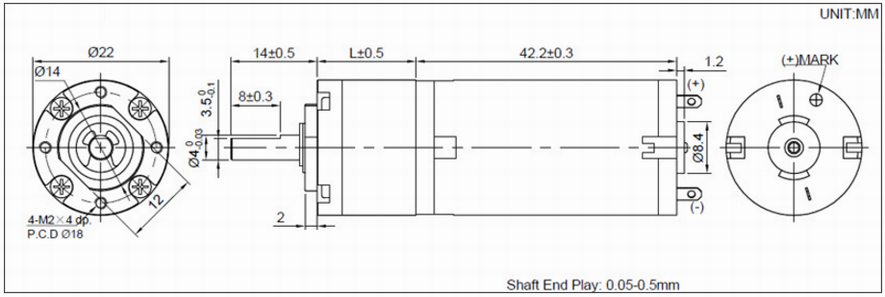

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-POG22A-241520

12.0-24.0

24VDC

1520

≤0.09

1310

≤0.23

0.16

≤1.2

0.65

HT-POG22A-24380

12.0-24.0

24VDC

380

≤0.09

325

≤0.23

0.66

≤1.2

3.5

HT-POG22A-24320

12.0-24.0

24VDC

320

≤0.09

272

≤0.23

0.82

≤1.2

3.2

HT-POG22A-24115

12.0-24.0

24VDC

115

≤0.09

95

≤0.23

1.95

≤1.2

8.2

HT-POG22A-2495

12.0-24.0

24VDC

95

≤0.09

80

≤0.23

2.35

≤1.2

10.5

HT-POG22A-2482

12.0-24.0

24VDC

82

≤0.09

70

≤0.23

2.68

≤1.2

12.5

HT-POG22A-2471

12.0-24.0

24VDC

71

≤0.09

60

≤0.23

3.55

≤1.2

12.5*

HT-POG22A-2458

12.0-24.0

24VDC

58

≤0.09

47

≤0.23

3.95

≤1.2

12.5*

HT-POG22A-2440

12.0-24.0

24VDC

40

≤0.09

32

≤0.23

6.0

≤1.2

12.5*

HT-POG22A-2422

12.0-24.0

24VDC

22

≤0.09

18

≤0.23

8.0*

≤1.2

12.5*

HT-POG22A-2405

12.0-24.0

24VDC

5

≤0.09

3.8

≤0.23

8.0*

≤1.2

12.5*

HT-POG22A-2403

12.0-24.0

24VDC

3

≤0.09

2.5

≤0.23

8.0*

≤1.2

12,5*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Keyword: 12 rpm motor, mini planetary gearbox, 12 volt dc motor low rpm high torque
