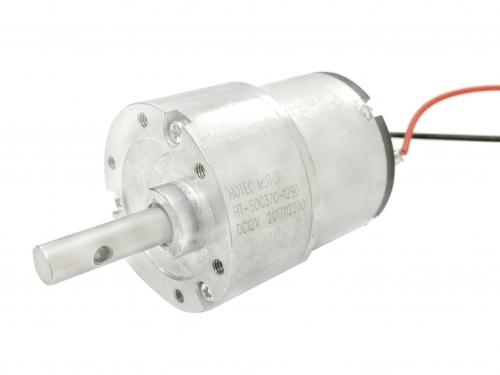

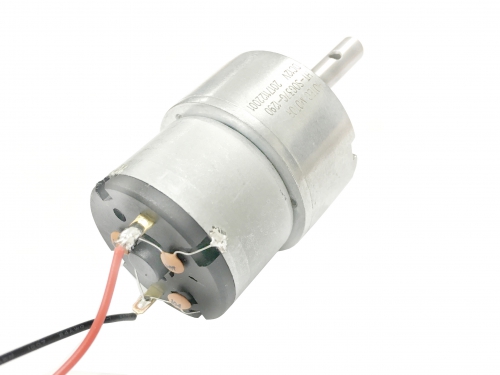

37mm Diameter DC Gear Motor

HT-SOG37G

-Motor type: Brushed DC motor .
-Gearbox: Spur gearbox
-Voltage: 3~12v
-Speed: 10~600RPM
-Torque: 0.1~10kg.cm
-Output shaft: 6mm diameter
-Product: 37 diameter 12v dc motor high torque 300 rpm

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~12VDC
    -Speed: 10~600rpm
    -Torque: 0.1~10kg.cm
    -Offset shaft
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Vending and Banking System
    -Sanitary Dispenser
    -Electric valve
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

Gear Ratio

10

30

90

Gearbox length “L” (mm)

                                              19.4

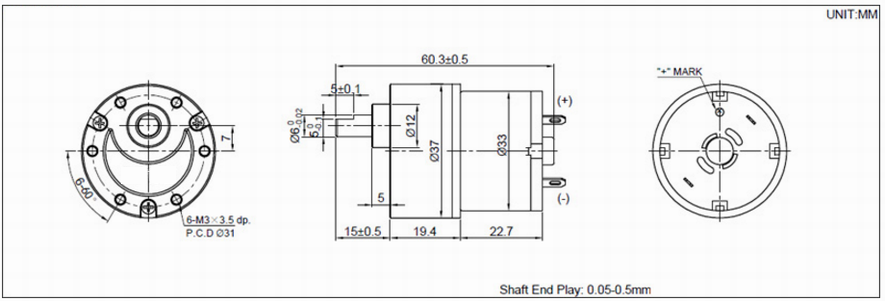

Dimensions

Reference

MODEL

                     VOLTAGE

            NO LOAD

              AT MAX EFFICIENCY

                AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG37G-03350

1.5-4.5

3VDC

350

≤0.07

275

≤0.28

0.2

≤1.65

1.15

HT-SOG37G-03115

1.5-4.5

3VDC

115

≤0.07

90

≤0.28

0.55

≤1.65

2.85

HT-SOG37G-0380

1.5-4.5

3VDC

80

≤0.07

62

≤0.28

0.8

≤1.65

4.25

HT-SOG37G-0340

1.5-4.5

3VDC

40

≤0.07

29

≤0.28

2.2

≤1.65

12.5

HT-SOG37G-06330

3.0-9.0

6VDC

330

≤0.05

270

≤0.29

0.25

≤1.15

1.15

HT-SOG37G-06115

3.0-9.0

6VDC

115

≤0.05

92

≤0.29

0.55

≤1.15

2.8

HT-SOG37G-0638

3.0-9.0

6VDC

38

≤0.05

30

≤0.29

2.5

≤1.15

8.3

HT-SOG37G-12640

6.0-12.0

12VDC

640

≤0.45

510

≤0.25

0.28

≤0.85

1.15

HT-SOG37G-12220

6.0-12.0

12VDC

220

≤0.15

155

≤0.25

0.65

≤0.85

3.05

HT-SOG37G-1268

6.0-12.0

12VDC

68

≤0.15

50

≤0.28

2.55

≤0.85

10.0

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available

Tag:high torque dc motor with encoder, motor reducer gearbox, 15 rpm dc motor
