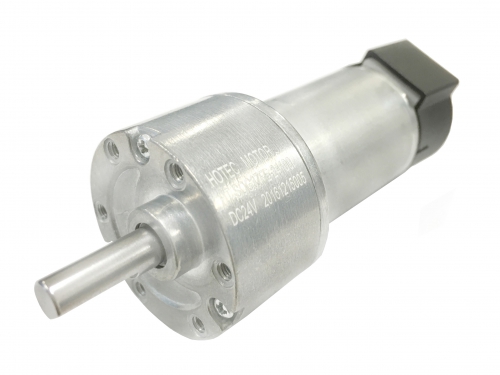

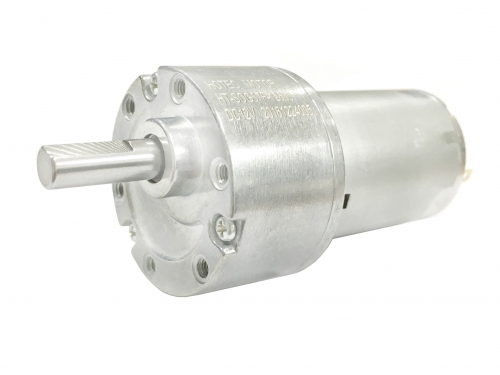

37mm Diameter DC Gear Motor

HT-SOG37F

-Motor type: Brush electric DC motor .
-Gearbox: Spur gear reducer
-Voltage: 3~24V
-Speed: 2~600RPM
-Torque: 0.5~35kg.cm
-Output shaft: 6mm diameter
-Product: high torque 12v 24v dc reversible electric gear motor

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 2~600rpm
    -Torque: 0.5~35kg.cm
    -Precious carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low Noise
    -Vending and Banking System
    -Sanitary and Cleaning
    -Robtics and Equipment

  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

6

Gear Ratio

10

20

50

120

450



30

70

150

490





90

210

630







270

810











Gearbox length “L” (mm)

                 22.5

27.5

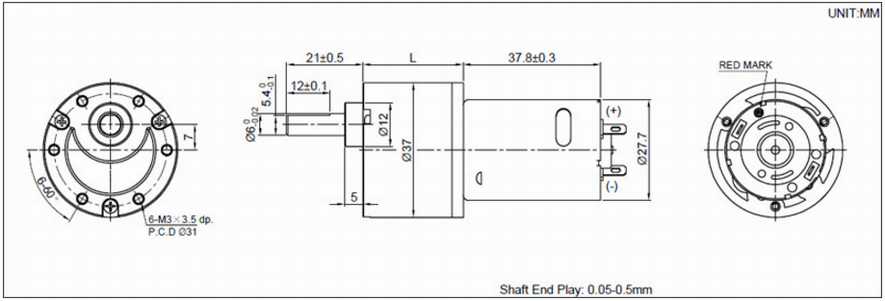

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG37F-12600

6.0-12.0

12VDC

600

≤0.15

485

≤0.60

0.6

≤3.15

2.45

HT-SOG37F-12310

6.0-12.0

12VDC

310

≤0.15

245

≤0.60

1.1

≤3.15

4.56

HT-SOG37F-12205

6.0-12.0

12VDC

205

≤0.15

165

≤0.60

1.45

≤3.15

6.55

HT-SOG37F-12125

6.0-12.0

12VDC

125

≤0.15

100

≤0.60

2.5

≤3.15

10.5

HT-SOG37F-1285

6.0-12.0

12VDC

85

≤0.15

70

≤0.60

3.3

≤3.15

12.5

HT-SOG37F-1270

6.0-12.0

12VDC

70

≤0.15

52

≤0.60

4.5

≤3.15

16.5

HT-SOG37F-1250

6.0-12.0

12VDC

50

≤0.15

42

≤0.60

5.2

≤3.15

 20.6

HT-SOG37F-1230

6.0-12.0

12VDC

30

≤0.15

24

≤0.60

9

≤3.15

36

HT-SOG37F-1222

6.0-12.0

12VDC

22

≤0.15

17

≤0.60

11.5

≤3.15

46

HT-SOG37F-1212

6.0-12.0

12VDC

12

≤0.15

10

≤0.60

17.5

≤3.15

78*

HT-SOG37F-1209

6.0-12.0

12VDC

9

≤0.15

7.5

≤0.60

24

≤3.15

80*

HT-SOG37F-1207

6.0-12.0

12VDC

7

≤0.15

6

≤0.60

30

≤3.15

80*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Tag: 3 rpm dc motor, 24 volt gear motor, tt dc gearbox motor
