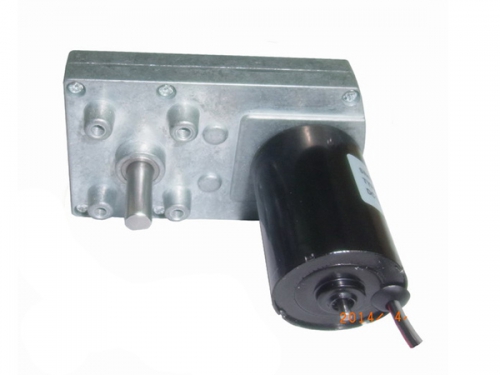

Flat Gearbox Motor

HT-BL-COG95A

-Size: 95x60 mm
-Gearbox :Spur Gear Reduction
-Voltage:6~24V
-Speed: 2~190 RPM
-Torque:3-150kg.cm
-Output shaft: 8mm diameter

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 6~24VDC
    -Speed: 2~190 rpm
    -Torque: 1~150kg.cm

    -Long Lifetime
    -Low Noise
    -Precise Metal Gears
    -No Spark

    -Home and office Automation
    -Banking and Vending System
    -Equipment


  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

3

4

5

Gear Ratio

37

162

594

60

265

651

86

315

973





1059

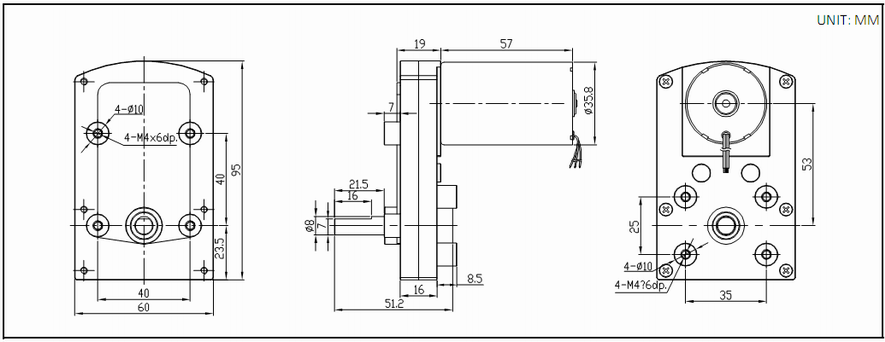

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
    RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-BL-COG95A-24135

20.0-28.0

24VDC

135

0.20

105

0.35

7

4.0

30

HT-BL-COG95A-2483

20.0-28.0

24VDC

83

0.20

63

0.35

11.5

4.0

48

HT-BL-COG95A-2476

20.0-28.0

24VDC

76

0.20

57

0.35

12.5

4.0

53

HT-BL-COG95A-2458

20.0-28.0

24VDC

58

0.20

43

0.35

16

4.0

68

HT-BL-COG95A-2431

20.0-28.0

24VDC

31

0.20

22

0.35

29

4.0

129

HT-BL-COG95A-2419

20.0-28.0

24VDC

19

0.20

14

0.35

47

4.0

210

HT-BL-COG95A-2416

20.0-28.0

24VDC

16

0.20

11

0.35

55

4.0

250

HT-BL-COG95A-248.5

20.0-28.0

24VDC

8.5

0.20

6

0.35

102

4.0

410

HT-BL-COG95A-247.7

20.0-28.0

24VDC

7.7

0.20

5.4

0.35

112

4.0

450*

HT-BL-COG95A-2405

20.0-28.0

24VDC

5

0.20

3.3

0.35

158

4.0

500

HT-BL-COG95A-244.7

20.0-28.0

24VDC

4.7

0.20

3

0.35

172

4.0

500*

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, 6 wires are optional :
        (1) Red wire: positive pole
        (2) Black wire : negative pole
        (3) White wire: CW/CCW control
        (4) Yellow wire :FG signal
        (5) Blue wire: PWM control
        (6) Gree wire : Brake
