37mm Diameter DC Gear Motor

HT-SOG37B

-Motor type: Brushed electric DC motor .
-Gearbox: Spur gearbox
-Voltage: 3-24V
-Speed: 1~600RPM
-Torque: 1-35kg.cm
-Output shaft: 6mm diameter
-Product: 12v dc  electric motor with gear drive train

Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle

  • Performance Range: Key Features: Typical Applications:
    -Voltage: 3~24VDC
    -Speed: 1~600rpm
    -Torque: 0.5~35kg.cm
    -Precious Carbon Brush
    -Precise Metal Gears
    -CW/CCW
    -Low noise
    -Vending and Banking System
    -Sanitary and Cleaning
    -Robtics and Equipment
  • *

    *

    *

    *

Gear Ratio

Gear Ratio Stage

2

3

4

5

6

Gear Ratio

10

20

50

120

450



30

70

150

490





90

210

630







270

810











Gearbox length “L” (mm)

                 22.5

27.5

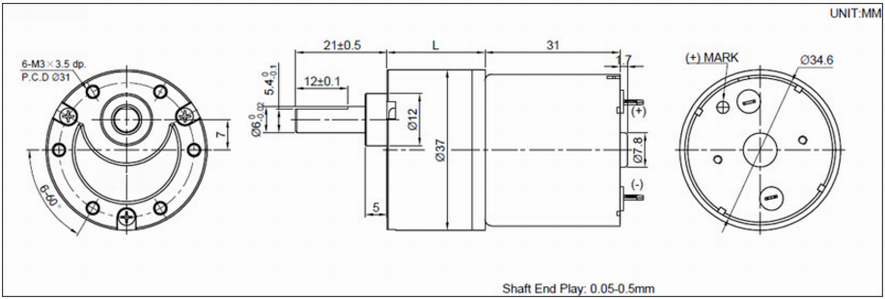

Dimensions

Reference

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION
   RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG37B-0680

3.0-7.2

6VDC

80

≤0.15

65

≤0.22

2.50

≤1.15

10.85

HT-SOG37B-0648

3.0-7.2

6VDC

48

≤0.15

40

≤0.22

5.6

≤1.15

23

HT-SOG37B-0625

3.0-7.2

6VDC

25

≤0.15

20

≤0.22

9.5

≤1.15

38

HT-SOG37B-063.5

3.0-7.2

6VDC

3.5

≤0.15

2.5

≤0.22

15

≤1.15

60

HT-SOG37B-1235

9.0-14.0

12VDC

35

≤0.05

26

≤0.17

1.65

≤0.95

6.5

HT-SOG37B-1210

9.0-14.0

12VDC

10

≤0.05

8

≤0.17

4.55

≤0.95

18.5

HT-SOG37B-1204

9.0-14.0

12VDC

4

≤0.05

2.8

≤0.17

11

≤0.95

44

HT-SOG37B-24120

12.0-24.0

24VDC

120

≤0.06

103

≤0.22

1.65

≤1.15

6.55

HT-SOG37B-2485

12.0-24.0

24VDC

85

≤0.06

72

≤0.22

2.35

≤1.15

10.5

HT-SOG37B-2468

12.0-24.0

24VDC

68

≤0.06

57

≤0.22

3.05

≤1.15

12.25

HT-SOG37B-2440

12.0-24.0

24VDC

40

≤0.06

36

≤0.22

4.0

≤1.15

24

HT-SOG37B-2422

12.0-24.0

24VDC

22

≤0.06

18

≤0.22

7.2

≤1.15

28

Remark:
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available.

Tag: gb37rg, 12v dc motor 300 rpm, 24v motor high torque
