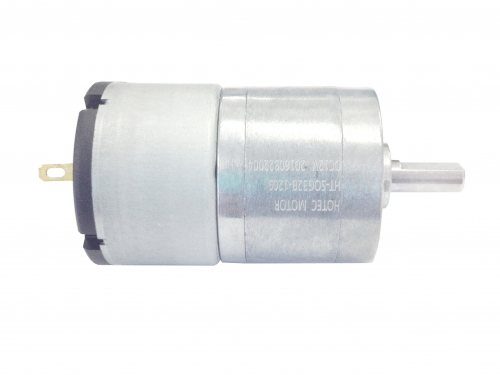

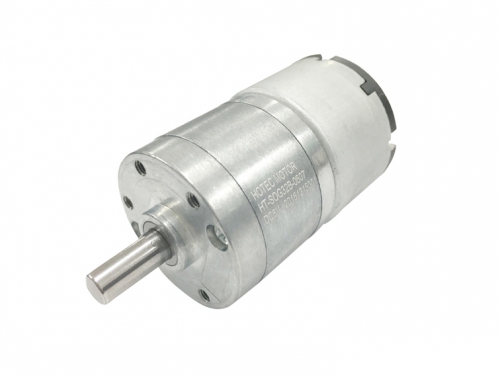

33mm Diameter Geared Motors
HT-SOG33
-Size: 33mm Diameter
-Gearbox :Spur Gear Reduction
-Voltage: 3~24V
-Speed:1~600RPM
-Torque:0.5~20kg.cm
-Output shaft: 6mm diameter
Customized Service:
1. Voltage
2. Speed
3. Torque
4. Output shaft
5. Rear Shaft
6. Noise
7. Current draw
8.Life-cycle
-
Performance Range: Key Features: Typical Applications: -Voltage: 3~24VDC
-Speed: 1~600rpm
-Torque: 0.5~20kg.cm
-Precious Metal /Carbon Brush
-Low Cost
-CW/CCW
-Low noise
-Center Shaft-IoT
-Robots
-Industrial products
-Smart access, Valves
Gear Ratio
|
Gear Ratio Stage |
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Gear Ratio |
8 |
18 |
44 |
106 |
255 |
1956 |
|
|
52 |
124 |
299 |
|||||
|
|
61 |
||||||
|
|
|
||||||
|
|
|
|
|||||
|
Gearbox length “L” (mm) |
22.5 |
27.5 |
29.2 | ||||

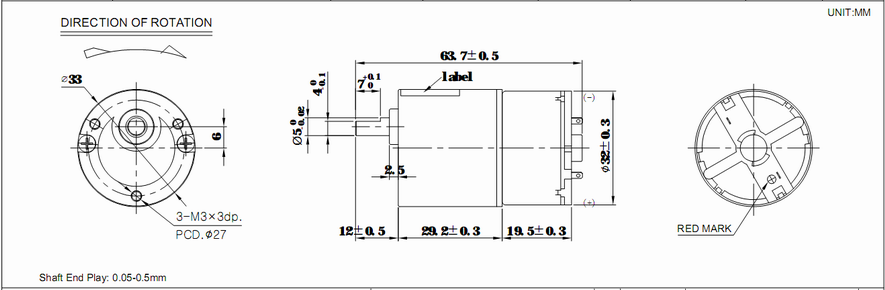

Dimensions
Reference
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAX EFFICIENCY |
AT STALL |
|||||
|
|
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
CURRENT |
TORQUE |
|
|
r/min |
A |
r/min |
A |
kg.cm |
A |
kg.cm |
|||
|
HT-SOG33-6723 |
3.0-9.0 |
6VDC |
723 |
≤0.12 |
600 |
≤0.27 |
0.11 |
≤0.8 |
0.5 |
|
HT-SOG33-6298 |
3.0-9.0 |
6VDC |
298 |
≤0.12 |
244 |
≤0.27 |
0.24 |
≤0.8 |
1 |
|
HT-SOG33-6125 |
3.0-9.0 |
6VDC |
125 |
≤0.12 |
102 |
≤0.27 |
0.51 |
≤0.8 |
2.55 |
|
HT-SOG33-6105 |
3.0-9.0 |
6VDC |
105 |
≤0.12 |
86 |
≤0.27 |
0.58 |
≤0.8 |
2.9 |
|
HT-SOG33-690 |
3.0-9.0 |
6VDC |
90 |
≤0.12 |
74 |
≤0.27 |
0.66 |
≤0.8 |
3.3 |
|
HT-SOG33-0652 |
3.0-9.0 |
6VDC |
52 |
≤0.12 |
42 |
≤0.27 |
1.10 |
≤0.8 |
5.5 |
|
HT-SOG33-0644 |
3.0-9.0 |
6VDC |
44 |
≤0.12 |
36 |
≤0.27 |
1.32 |
≤0.8 |
6.6 |
|
HT-SOG33-0622 |
3.0-9.0 |
6VDC |
22 |
≤0.12 |
18 |
≤0.27 |
2.4 |
≤0.8 |
12 |
|
HT-SOG33-0618 |
3.0-9.0 |
6VDC |
18 |
≤0.12 |
15 |
≤0.27 |
2.9 |
≤0.8 |
15 |
|
HT-SOG33-0609 |
3.0-9.0 |
6VDC |
9 |
≤0.12 |
7.3 |
≤0.27 |
5.1 |
≤0.8 |
25.5 |
|
HT-SOG33-067.8 |
3.0-9.0 |
6VDC |
7.8 |
≤0.12 |
6.3 |
≤0.27 |
6.0 |
≤0.8 |
30 |
|
HT-SOG33-4.52.9 |
3.0-6.0 |
4.5VDC |
2.9 |
≤0.15 |
2.6 |
≤0.34 |
15.5 |
≤1.0 |
40 |
1, The speed and torque are adjustable .
2, The gearbox can match other DC motors .
3, Shaft can be customized .
4, The voltage can be 3v,4.5v,6v,9v, 12v, 24v.
5, This gear motor can be equipped with encoders .
6, Terminals support : cables and connectors available
